600 W

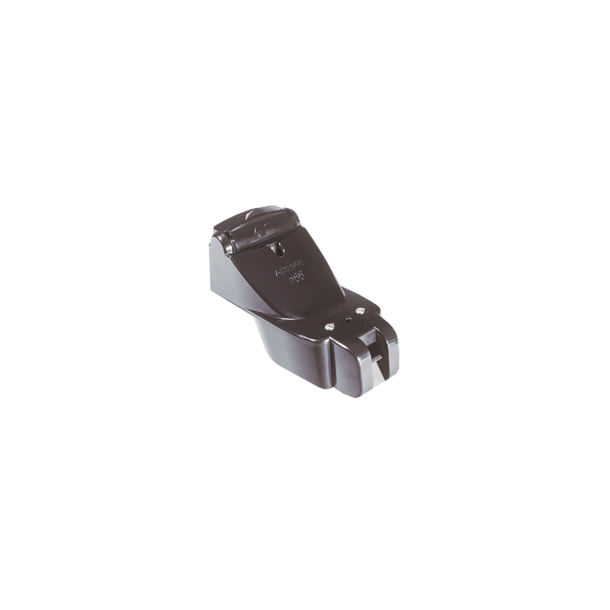

The P66 Multisensor combines depth, and temperature functions in one housing. And it features our 50/200 kHz, dual-frequency, ceramic element. This hydrodynamic housing with its rounded nose reduces the turbulence under the transducer’s acoustic face for clear display images. It is Airmar’s best transom mount for boats up to 8 m (25') long.
-
- Depth, and fast-response water-temperature sensing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Recessed water-flow channel protects paddlewheel from obstructions
- Plastic release bracket protects sensor from frontal impact
- Sensor can be removed from bracket without tools for easy service or storage
- Chemical and impact-resistant plastic housing
Options
- Smart™ Sensor version (P66S) featuring embedded microelectronics
-
Acoustic Window: Layered plastic urethane (LPU)
Cable-Length: 10 m (33')
Common Use: Leisure/Yachting, Fishing
Connector: Garmin 6-Pin
Conventional Beam: 45°/12°
Country of Origin: USA
Frequency Band: 50/200 kHz
Material: Plastic
Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
Mounting Style: Transom
Single or Dual Frequency: Conventional Dual Frequency
Tilted Element: No
Weight: 0.5 kg (1.1 lb.)
Power Rating: 600 W
Functions: Depth, Temperature
Max Vessel LOA: Up to 8 m (26')
Display Connector: 6G
